Chair Rail Moulding 3" - 93

Chair Rail Moulding 3" - 93

Chair Rail Moulding 3" - 93

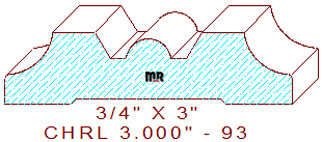

This custom chair rail molding 3" - 93 measures 3.000" width by .750" thickness enabling the use of four quarter lumber for milling on an industrial-grade molder. The beautifully unique profile contains a 15/32" full half-circle attached to a 5/32" broad sunk fillet in the center. The line segment connects to an upsloping thirty-two degree angled line, merged with a 7/16" wide flat area, and a 1/2" cove with a 3/64" eased edge on each side edge of the pattern.

Thinking about possibly building an enclosed tool room for the profile knife grinder, template making machine, and a place to store all your acrylic patterns and knives? You may want to review our commentary on securing a profile knife grinder before moving; this small, simple task can save you thousands of dollars in repair cost by not locking down the lineal table bearings before moving the machinery.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .625" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
