Chair Rail 3" - 96
Chair Rail 3" - 96

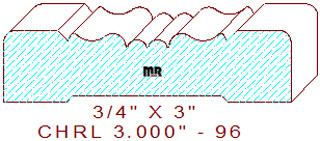

This custom 3" - 96 chair rail measures 3.000" width by .750" thickness, enabling the use of four-quarter lumber for milling on an industrial-grade molder. The attractive symmetrical profile contains two 7/32" broad half-circles in the center, connected to a three tangent radius wave-like curvature. The wave merges with an upsloping beveled line with 9/16"round corners on both side edges of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.281
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$238.00
$238.00
Total:
$476.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.00
$253.00
Total:
$506.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.50
$275.50
Total:
$551.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
