Chair Rail Moulding 3" - 98

Chair Rail Moulding 3" - 98

Chair Rail Moulding 3" - 98

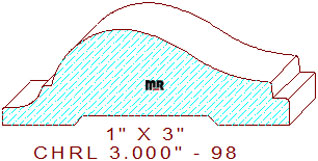

This stylish chair rail molding 3" - 98 measures 3.000" width by 1.000" thickness permitting the use of five quarter lumber for milling on an industrial-grade molder. The lovely designer pattern contains a 13/32" broad congee with a 3/64" eased edge on the top left. That concave semicircle connects to a 7/64" horizontal fillet and a beautiful two tangent radius wave-like arch in the center; they are attached to an 11/64" by 11/64" notch with a 3/64" rolled corner leaving a 9/32" thickness on the right side edge of the design.

Ever wonder why some knives never exactly line up with one another in the cutter head? Perhaps a Weinig optical measuring stand and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .976" (top knives) & .093" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
