Chair Rail Moulding 3" - 99

Chair Rail Moulding 3" - 99

Chair Rail Moulding 3" - 99

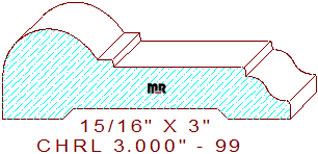

This stylish chair rail molding 3" - 99 measures 3.000" width by .937" thickness requiring the use of five quarter lumber for milling on an industrial-grade molder. The classy profile contains a two tangent radius thumbnail shaped arc on the top left. The semicircular upper section connects to an 11/64" wide by 5/64" deep perpendicular step and a 1-3/8" broad flat line in the middle. That line segment merges with a 3/32" vertical drop in elevation joined to a small ogee with a 3/64" eased edge on the right side of the design.

Our professionally designed acrylic templates and knives include the required draft angles and blend areas to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Regardless if you own an industrial shaper or an industrial molder such as Weinig, Wadkin, Leadermac, SCM, Diehl, Northtech, or Homag, our precision cutters will mill flawlessly on them all.

Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these types of milling operations. For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .937" (top knives) & .093" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
