Chair Rail 3-1/16" - 1

Chair Rail 3-1/16" - 1

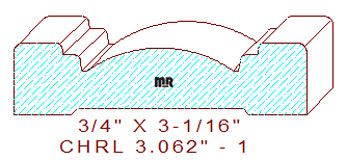

This symmetrical 3-1/16" - 1 chair rail measures 3.062" wide by .750" thick. The stylish profile consists of a large recessed radius arc in the center of the pattern, flanked by a small fillet and two stepped fillets with a 3/32" radius on both sides of the design. This would make an elegant-looking casing as well. For your convenience, we have placed all our symmetrical casing profiles under the chair rail category.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.062
Depth of Cut: 0.289
Bottom Cutter Head
Width: 3.062
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$241.22
$241.22
Total:
$482.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$256.47
$256.47
Total:
$512.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.34
$279.34
Total:
$558.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
