Chair Rail Moulding 3-1/8" - 10

Chair Rail Moulding 3-1/8" - 10

Chair Rail Moulding 3-1/8" - 10

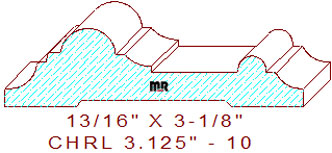

This lovely sophisticated chair rail moulding 3-1/8" - 10 measures 3.125" wide by .812" thickness, allowing the detail to be milled from four quarter lumber. The custom profile is composed of a 9/16" wide half-circle on top, connected to a 9/64" wide by 3/32" deep step that joins to a 7/64" wide line segment and a 9/32" cove on the left, attached to a shallow 3/8" cove flanked by a small horizontal and vertical line with a 29/32" wide sunk fillet in the center, connected to a 5/16" wide bead with a 3/32" wide line and another 9/32" cove on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind knives for all the major brand names of machinery, including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you'll be delighted with the results; all the beautiful patterns you manufacture will surely be a cut above the rest.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.125" / Depth of Cut = .802" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
