Chair Rail Moulding 3-1/4"

Chair Rail Moulding 3-1/4"

Chair Rail Moulding 3-1/4"

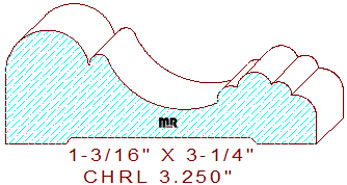

This highly detailed chair rail/casing moulding 3-1/4" measures 3.250" wide by 1.187" thickness, it will require six quarter lumber for milling on an industrial molder. The profile is composed of a 7/8" wide half round circle on the left, connected to a 3/16" wide bead that transitions into a deep down sloping 7/8" radius scotia, attached to a lovely cluster of quarter and half round circles on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = 1.062" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
