Chair Rail Moulding 3-1/4" - 10

Chair Rail Moulding 3-1/4" - 10

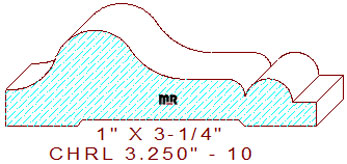

This stylishly elegant chair rail moulding 3-1/4" - 10 measures 3.250" wide by 1.000" thickness, the detail will necessitate five quarter lumber for milling on a industrial molder. The graceful profile is composed of a 7/16" radius semicircular arc tangent off of a 1/2" cove on the left side, a 45/64" concave arc in the center is tangent off a 7/16" straight line with a 3/16" round over edge that transitions into a 1/2" wide half round circle with a 1/4" wide line segment, leaving a 1/4" thickness dimension on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Ever wonder why some knives never exactly line up with one another in the cutter head? Perhaps a Weinig optical measuring stand and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .750" (top knives) & .063" (bottom cutters.)
