Chair Rail Moulding 3-1/4" - 11

Chair Rail Moulding 3-1/4" - 11

Chair Rail Moulding 3-1/4" - 11

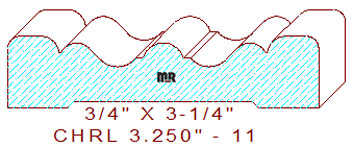

This Elegant Chair Rail/Casing Moulding 3-1/4" - 11 measures 3.250" wide by .812" thickness, with a .318" depth of cut on the top horizontal profile knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from.

The symmetrical profile is comprised of a centered 7/32" radius half round circle, flanked by 1/16" wide fillets, attached to a cyma reversa that transitions into a 3/16" radius that is connected to a 1/8" radius edge fillet on each side of the pattern.

Looking for that special custom moulding to enhance the architectural style of your current project, send us a sketch, custom moulding knife design is our specialty. Experience the beauty we can create together from your outlined moulding ideas and our vast knowledge of moulder tooling and machinery.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
