Chair Rail Moulding 3-1/4" - 12

Chair Rail Moulding 3-1/4" - 12

Chair Rail Moulding 3-1/4" - 12

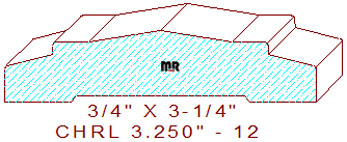

This beautifully creative chair rail/casing moulding 3-1/4" - 12 measures 3.250" wide by .750" thickness, this pattern will require four quarter lumber for milling on an industrial molder. The striking profile is composed of a 1-1/2" wide bidirectional nine point four six degree angled lines in the center, flanked by a 3/8" wide line segment with a 1/8" vertical drop in elevation, joined to a 1/2" wide, fourteen degree bevel with a 3/64" round over leaving a 3/8" thickness dimension on each side edge of the design. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .540" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
