Chair Rail 3-1/4" - 13

Chair Rail 3-1/4" - 13

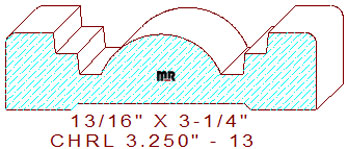

This lovely 3-1/4" - 13 chair rail measures 3.250" wide by .812" thick, allowing the pattern to be milled from four-quarter lumber. The attractive profile is composed of a recessed 1-1/4" wide semicircular arc in the center, flanked by 1/4" wide sunk fillets that transition into two 1/4" wide by 7/32" tall steps to the top of the pattern. The left and right sides consist of a 1/2" broad line with a 1/8" rounded edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.437
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$251.00
$251.00
Total:
$502.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.00
$267.00
Total:
$534.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.00
$291.00
Total:
$582.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
