Chair Rail Moulding 3-1/4" - 14

Chair Rail Moulding 3-1/4" - 14

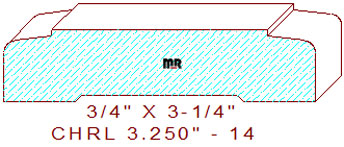

This contemporary chair rail/casing moulding 3-1/4" - 14 measures 3.250" wide by .750" thickness. The modern profile is composed of a 2-1/4" wide by 1/16" tall raised fillet in the center, flanked by a 1/2" wide seven degree angled line with a 1/8" radius on each side edge of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .375" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
