Chair Rail Moulding 3-1/4" - 20

Chair Rail Moulding 3-1/4" - 20

Chair Rail Moulding 3-1/4" - 20

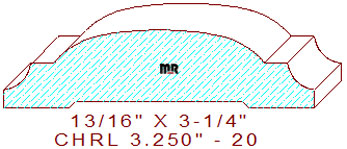

This attractive chair rail moulding 3-1/4" - 20 measures 3.250" wide by .875" thickness, enabling the pattern to be milled from four quarter lumber. The eye-catching symmetrical profile is composed of an elliptical shaped arc comprised from a 3-5/16" radius arc tangent off of two 27/32" radius semicircles in the center, flanked by a 1/4" wide horizontal line segment with a 5/16" cove on each side edge of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Whether you have a Weinig R960 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .625" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
