Chair Rail Moulding 3-1/4" - 21

Chair Rail Moulding 3-1/4" - 21

Chair Rail Moulding 3-1/4" - 21

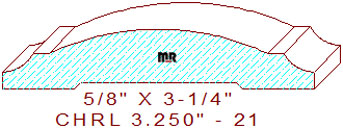

This belly band chair rail moulding 3-1/4" - 21 measures 3.250" wide by .625" thickness, allowing the pattern to be machined from four quarter lumber. The decorative profile is composed of a 2-9/32" wide semicircular arc in the center, flanked by two 11/64" wide line segments with a 3/8" cove on each side edge of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Are you looking to become more efficient in your current milling production? Please read our commentary on moulder production tips, these clever suggestions were written to help you save time and money on a daily task. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .446" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
