Chair Rail Moulding 3-1/4" - 26

Chair Rail Moulding 3-1/4" - 26

Chair Rail Moulding 3-1/4" - 26

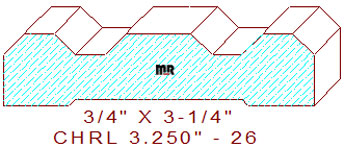

This southwestern chair rail/symmetrical casing moulding 3-1/4" - 26 measures 3.250" wide by .750" thickness, allowing the detail to be machined from four quarter lumber. The chamfered edge profile is composed of a 43/64" wide flat line in the center, flanked on both sides by five 5/16" wide line segments leaving a 17/32" thickness dimension on each side of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Become professionally efficient while searching over 15,000 mouldings in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .290" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
