Chair Rail Moulding 3-1/4" - 28

Chair Rail Moulding 3-1/4" - 28

Chair Rail Moulding 3-1/4" - 28

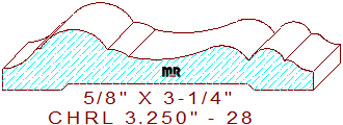

This stylishly elegant chair rail moulding 3-1/4" - 28 measures 3.250" wide by .625" thickness, allowing the detail to be milled from four quarter lumber. The beautiful profile is composed of a 11/16" wide half round circle joined to a 7/64" semicircle and a 13/32" cove on the left side, attached to a 19/64" quarter round arc that transitions into an elongated two tangent radius cyma recta in the center, connected to a 3/8" wide half round bead with a tiny two tangent radius cyma reversa on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .431" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
