Chair Rail Moulding 3-1/4" - 3

Chair Rail Moulding 3-1/4" - 3

Chair Rail Moulding 3-1/4" - 3

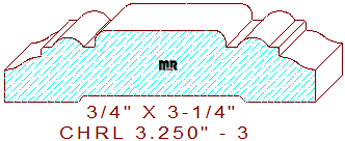

This highly decorative chair rail/symmetrical casing moulding 3-1/4" - 3 measures 3.250" wide by .750" thickness, enabling the detail to be machined from four quarter lumber. The elegantly gorgeous profile is composed of a 1-3/8" wide by 11/64" tall raised fillet with 1/8" rounded edges in the center, flanked by a 1/8" wide sunk fillet that joins to a 21/64" wide half round bead, attached to a 1/8" wide by 7/64" deep step with a small two tangent radius ogee on each side edge of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and former Weinig moulder/grinder field service technician. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .411" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
