Chair Rail Moulding 3-1/4" - 33

Chair Rail Moulding 3-1/4" - 33

Chair Rail Moulding 3-1/4" - 33

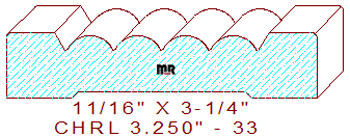

This reeded chair rail/door casing molding 3-1/4" - 33 measures 3.250" width by .750" thickness, enabling the use of four quarter lumber for milling on an industrial-grade molder. The beaded symmetrical pattern contains four 1/2" wide convex semicircles in the center. The beads connect to an upsloping beveled line that transitions into a 1/2" broad flat line segment with a 1/16" eased corner on each side edge.

Utilize our enchanting patterns to create a stylish molding catalog for your millwork company, or, simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you in the remodel of that beautiful house in the transformation into an elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .219" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
