Chair Rail 3-1/4" - 38

Chair Rail 3-1/4" - 38

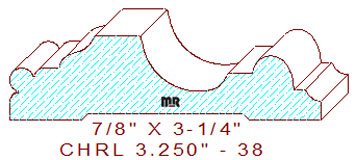

This 3-1/4" - 38 pencil bead chair rail measures 3.250" wide by .875" thickness, necessitating the use of five-quarter lumber for machining on an industrial molder. The beautifully ornate profile is comprised of a 1/4" wide pencil bead flanked by 3/32" round-overs on the left side edge, connected to a tiny flat line that transitions into an ogee and a 1/2" broad line on top, joined to a two tangent radius scotia and a thumbnail shaped arc flanked by horizontal line segments at different elevations with a small 11/64" cove on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.875
Depth of Cut: 0.123
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.681
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
Not Needed
$267.00
$251.00
Total:
$652.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
Not Needed
$283.00
$267.00
Total:
$691.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
Not Needed
$307.00
$291.00
Total:
$749.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
