Chair Rail Moulding 3-1/4" - 41

Chair Rail Moulding 3-1/4" - 41

Chair Rail Moulding 3-1/4" - 41

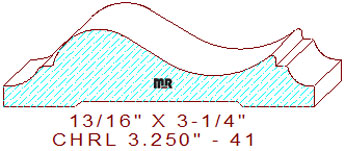

This elegant chair rail moulding 3-1/4" - 41 measures 3.250" wide by .812" thickness. The lovely profile is comprised of a graceful two tangent radius cyma reversa in the center, flanked by a 3/32" wide horizontal line and a 3/8" radius cove on the left, the right side consists of a 1/8" wide by 7/64" deep notched fillet, attached to a 1/4" radius cove leaving a 7/32" thickness dimension on each side edge of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Learn how to become more efficient while searching over 15,000 mouldings in our state of the art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .593" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
