Chair Rail Moulding 3-1/4" - 47

Chair Rail Moulding 3-1/4" - 47

Chair Rail Moulding 3-1/4" - 47

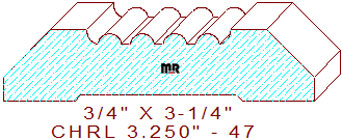

This stylish chair rail/door casing molding 3-1/4" - 47 measures 3.250" width by .750" thickness enabling the use of a 3-1/2" wide blank of four quarter lumber for milling on a commercial molder. The elegant beaded profile contains four 1/4" broad half-circles divided by three 3/32" wide sunk fillets in the center. The circles' outside edge connects to an upsloping 1/8" radius cove that transitions into a 3/8" wide flat line segment. Merged to a 1/2" forty-five degrees chamfered edge, leaving a 1/4" thickness dimension on both edges of the pattern.

Are you a molding manufacturer? Please add your company information to our millwork suppliers map. This valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free; offer your clients beautiful wood pattern designs that will enhance the grace and luxury of their elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .578" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
