Chair Rail Moulding 3-1/4" - 53

Chair Rail Moulding 3-1/4" - 53

Chair Rail Moulding 3-1/4" - 53

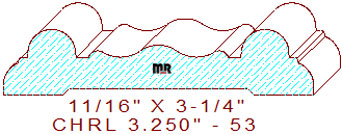

This exquisite chair rail moulding 3-1/4" - 53 measures 3.250" width by .687" thickness, necessitating a 3-1/2" wide blank of four-quarter lumber for milling on an industrial moulder. The well-crafted symmetrical profile contains a bi-directional wave-like pattern in the center. The free-flowing curvature gets flanked by a 9/64" broad sunk fillet joined to a towering half-circle with a tiny step and a 1/4" quarter round on both side edges.

Custom-made elegance is a phrase used to define thousands of our moulding profile's beauty, style, and artisanship. Suppose you own a recently built house or older dated residence. In that case, we have the professional ability, knowledge, and experience to create visually stunning details to complement the architectural design of your elegant home and office.

Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these types of milling operations. For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .687" (top blades) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
