Chair Rail Moulding 3-3/8" - 17

Chair Rail Moulding 3-3/8" - 17

Chair Rail Moulding 3-3/8" - 17

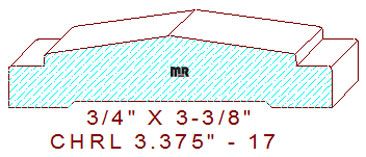

This lavish chair rail molding 3-3/8" - 17, measures 3.375" wide by .750" thickness, requiring the use of four quarter lumber for milling on an industrial-grade molder. The symmetrical profile contains a bidirectional 8.148 degree downsloping angled lines in the top center. This a-shaped section joins to a 3/8" wide by 1/8" deep perpendicular notch with a 3/64" eased edge leaving a 7/16" thickness dimension on the right side of the design.

Mirror Reflections has over thirty-five years’ experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities; you will be pleasantly impressed with our services.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.375" / Depth of Cut = .509" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
