Chair Rail Moulding 3-3/8" - 4

Chair Rail Moulding 3-3/8" - 4

Chair Rail Moulding 3-3/8" - 4

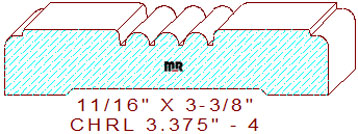

This reeded chair rail molding 3-3/8" - 4, measures 3.375" width by .687" thickness, allowing the use of four quarter lumber for machining on a commercial-grade molder. The lovely symmetrical profile contains a 31/32" broad area with three half-circle beads divided by small sunk fillets in the center, this area connects a 1-1/64" wide flat line segment with a tiny vertical step and a 1/8" round-over on each side corner of the design.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.375" / Depth of Cut = .274" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
