Chair Rail Moulding 3-3/8" - 5

Chair Rail Moulding 3-3/8" - 5

Chair Rail Moulding 3-3/8" - 5

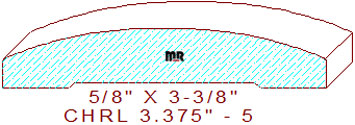

This arched chair rail molding 3-3/8" - 5, measures 3.375" wide by .625" thickness, permitting the use of four quarter lumber for milling on a commercial-grade molder. The attractive symmetrical belly band profile contains a 17/64" flat line segment in the center, tangent to a 3-31/32" convex semicircular arc with a 3/64" eased edge on each side edge of the design.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office. Our moulding catalog has over fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.375" / Depth of Cut = .501" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
