Chair Rail Moulding 3-3/8" - 9

Chair Rail Moulding 3-3/8" - 9

Chair Rail Moulding 3-3/8" - 9

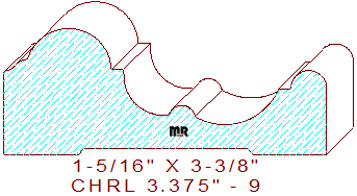

This elegant chair rail/door casing molding 3-3/8" - 9, measures 3.375" width by 1.313" thickness, requiring the use of six quarter lumber for milling on a commercial-grade molder. The lavish profile contains a tiny two tangent radius ogee with a 3/64" eased edge on the top left. Connected to a 7/8" full thumbnail shaped convex arc with a 1/8" horizontal line that merges with two different sized coves separated by a small half bead in the center. This section joins an additional 1/8" full-flat line segment and a 3/8" broad half-circle on the right side edge of the design.

Are you a molding manufacturer? Please add your company information to our millwork suppliers map; this valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free, why not offer your clients beautiful wood pattern designs that will enhance the grace and opulence of their elegant home.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.375" / Depth of Cut = 1.000" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
