Chair Rail 3-1/2" - 100

Chair Rail 3-1/2" - 100

Chair Rail 3-1/2" - 100

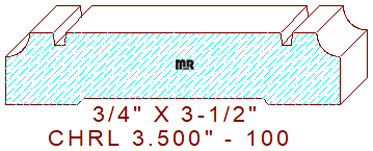

This 3-1/2" - 100 symmetrical chair rail measures 3.500" wide by .750" thickness. The profile is comprised of a 2-1/4" broad horizontal line in the center, flanked by a 1/8" wide by 1/8" deep kerf that transitions into a 1/4" horizontal segment with a 1/4" radius cove on each side leaving a 1/2" thickness dimension on the edges of the design. Browse our backout category for a suitable relief cut for this detail; we have a few options to select from. We have a matching baseboard that will complement this pattern for your review and consideration, baseboard 5.500" - 138.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Let us help you in the transformation of that beautiful house into an elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.250
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$255.50
$255.50
Total:
$511.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$272.50
Total:
$545.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$289.50
Total:
$579.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
