Chair Rail / Casing Moulding 3-1/2" - 15

Chair Rail / Casing Moulding 3-1/2" - 15

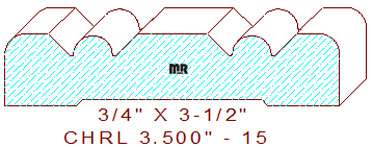

This symmetrical chair rail/casing moulding 3-1/2" - 15 measures 3.500" wide by .750" thickness. The beaded profile is comprised of a 47/64" wide horizontal line in the center flanked by forty-five degree bevels, joined to two 7/16" wide half round circles that are recessed by .020" for sanding, connected to another forty-five degree chamfer that transitions into a raised fillet with a 7/32" eased edge on both sides of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We're delighted you found a functional profile that interest you, please consider all the other things we can do for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .374" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
