Chair Rail Moulding 3-1/2" -16

Chair Rail Moulding 3-1/2" -16

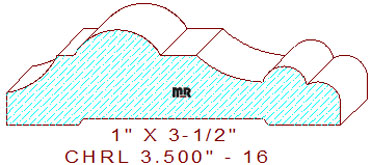

This fancy chair rail moulding 3-1/2" - 16 measures 3.500" wide by 1.000" thickness, requiring five quarter lumber to mill this pattern on an industrial moulder. The beautiful profile is comprised of a 29/32" wide half round circle flanked by an 11/64" wide horizontal line and a 11/16" cove with an eased edge on the left side, the right side consists of a 3/8" wide horizontal line, joined to a 1-3/32" radius cavetto with a 15/32" wide bead and a 15/32" quarter round edge. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .940" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
