Chair Rail 3-1/2" - 17

Chair Rail 3-1/2" - 17

Chair Rail 3-1/2" - 17

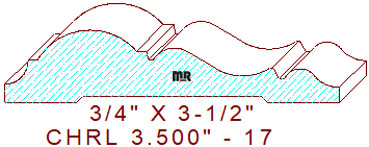

This ornate 3-1/2" - 17 chair rail measures 3.500" wide by .750" thick. The intricate profile is comprised of a 1-1/32" wide half-round circle flanked by small horizontal lines with a 1/4" cove on the left side. The center consists of a 3/64" wide sunk fillet attached to an elongated cyma reversa with a beveled edge, joined to another 1/16" wide sunk fillet with a smaller, more compact cyma reversa on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.594
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$255.50
$255.50
Total:
$511.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$272.50
Total:
$545.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$289.50
Total:
$579.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
