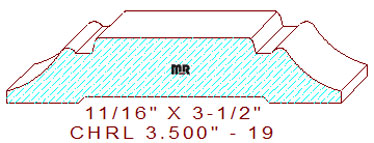

This Custom Chair Rail Moulding 3-1/2" - 19 measures 3.500" wide by .687" thickness, the symmetrically balanced profile is comprised of a 1-23/32" wide flat center with 1/16" radiuses on each end that transition into 11/64" wide sunk fillets connected to a 3/32" radius arc which is tangent off an 11/16" radius cavetto located on each top side of the pattern. All custom moulding knife template designs have ten-millimeter (.394") axial constant positioning to increase accuracy and reduce moulder setup time throughout production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
