Chair Rail Moulding 3-1/2" - 42

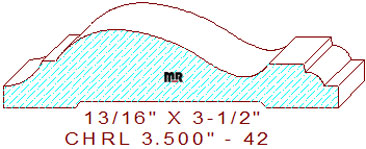

This elegant chair rail molding 3-1/2" - 42 measures 3.500" wide by .812" thickness permitting the use of a 3-3/4" wide piece of four-quarter lumber for milling on an industrial molder. The sumptuous profile contains a 29/64" cove with a 3/64" eased edge, joined to a 9/64" horizontal line segment on the top left. The short line connects to a graceful four tangent radius s-shaped curvature in the center. The remaining portion of the pattern consists of a 3/8" wide raised fillet, attached to a 3/16" ovolo and a 9/64" fillet with another 3/64" rolled edge on the design's right side.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.500" / Depth of Cut = .756" (top knives) & .062" (bottom blades).
