Chair Rail Moulding 3-1/2" - 47

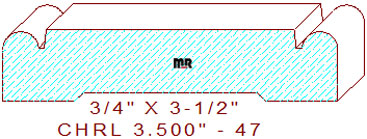

This half round edge chair rail/symmetrical door casing moulding 3-1/2" - 47 measures 3.500" wide by .750" thickness, allowing the detail to be milled out of four quarter lumber. The symmetrical profile is composed of a 2-5/8" wide horizontal line segment in the center, flanked by a 1/16" wide by 3/16" deep sunk fillet that joins to a recessed (.020" for sanding) 3/8" wide half round bead on each side edge of the pattern. We offer a few similar profiles in the same width for your review and consideration, chair rail 3.500" - 35 and chair rail 3.500" - 50, in addition, we have a six inch version of this exact profile, chair rail 6.000" - 21.

Are you looking to become more efficient in your current milling production? Please read our commentary on moulder production tips, these clever suggestions were written to help you save time and money on a daily task. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .364" (top knives) & .062" (bottom cutters.)
