Chair Rail 3-1/2" - 52
Chair Rail 3-1/2" - 52

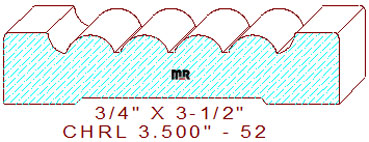

This reeded 3-1/2" - 52 chair rail/door casing measures 3.500" width by .750" thickness, permitting a 3-3/4" wide blank of four-quarter lumber for milling on an industrial molder. The beaded profile contains four recessed half-inch wide semicircular convex arcs divided by 1/16" sunk fillets in the center. The beads are flanked by a 9/32" radius cove merged with a 15/32" wide fillet with 1/16" rolled corners on both side edges of the design. We offer a few other patterns in the same size with similar design characteristics for your review and consideration, chair rail 3.500" - 48 and chair rail 3.500" - 96.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.218
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.00
$264.00
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$281.00
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$306.50
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
