Chair Rail Moulding 3-1/2" - 58

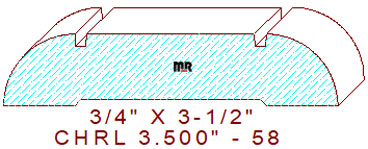

This symmetrical chair rail molding 3-1/2" - 58 measures 3.500" width by .750" thickness, permitting the use of a 3-3/4" wide blank of four-quarter lumber for milling on a commercial molder. The beautiful profile contains a 1-3/4" broad flat line on the top center. Each edge of the fillet connects to a 1/8" wide by 1/8" deep dado/groove merged with a 3/4" radius quarter round convex arc on each side edge of the design.

Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these types of milling operations. For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.5" / Depth of Cut = .750" (top knives) & .062" (bottom cutters).
