Chair Rail Moulding 3-1/2" - 66

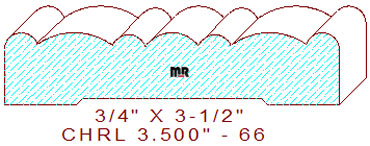

This multi-bead chair rail/symmetrical casing molding 3-1/2" - 66 measures 3.500" wide by .750" thickness, permitting a 3-3/4" wide piece of four-quarter lumber for milling on an industrial molder. The beautiful profile contains a 9/16" wide convex arc boarded by a 3/16" half-round circle in the center. The inner beads connect to a 25/32" broad arch with an 11/32" half round bead on each side edge of the design.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Be sure to download all our free dxf files; see how easy the services we provide can increase productivity and reduce your manufacturing cost.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.500" / Depth of Cut = .336" (top knives) & .062" (bottom blades).
