Chair Rail Moulding 3-1/2" - 72

This Decorative Chair Rail Moulding 3-1/2" - 72 measures 3.500" wide by 1.000" thickness with a 1.000" depth of cut on the top horizontal set of knives. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for these types of milling operations. Search our backout category for a suitable relief cut for this detail, we have a few options to choose from.

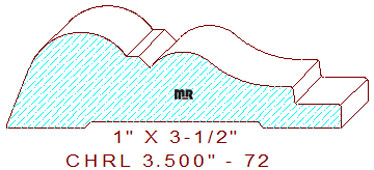

The profile is comprised of a 37/64" radius circle tangent off of a beveled line, attached to a small fillet with a chamfer that transitions into a cyma reversa, joined to a 1/2" wide by 3/16" deep notched fillet, leaving a 1/4" thickness dimension on the thin side of the pattern.

Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge, and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.
