Chair Rail 3-1/2" - 81
Chair Rail 3-1/2" - 81

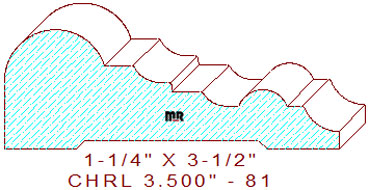

This distinctive 3-1/2" - 81 chair rail/door casing measures 3.500" wide by 1.250" thickness, allowing the detail to be cut from six-quarter lumber. The graceful elevation changing profile is composed of a 1-3/64" wide half-round circle on the top left, connected to a 5/16" flat line and a 13/32" wide congee with a 3/32" vertical step, joined to another 5/16" straight line and a 3/8" wide horizontal cove in the center, merged to a 1/2" wide semicircular bead with a 3/16" line segment and a 3/8" cavetto leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 1.063
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.930
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$281.00
Total:
$562.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
$298.00
Total:
$596.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
$323.50
Total:
$647.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
