Chair Rail Moulding 3-5/8" - 2

Chair Rail Moulding 3-5/8" - 2

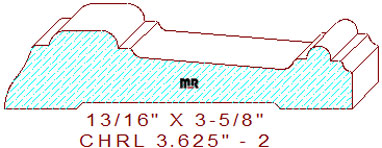

This innovative chair rail/casing moulding 3-5/8" - 2 measures 3.625" wide by .812" thickness, allowing the pattern to be milled from four quarter lumber. The attractive profile is composed of a shallow two tangent radius cyma recta on the left side, connected to a 23/32" wide by 3/16" tall raised fillet with 11/64" eased edges flanked by small line segments, joined to a tapered downward bidirectional congee made from 1/8" coves, attached to a 1/4" wide half round bead bordered by small horizontal lines with a 3/32" cove on the thin side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Need some supplies for your moulder? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and tool grinding room.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.625" / Depth of Cut = .812" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
