Chair Rail 3-5/8" - 3
Chair Rail 3-5/8" - 3

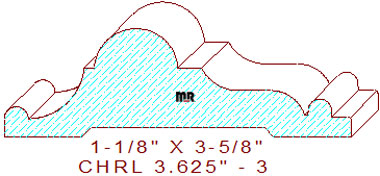

This Victorian-era 3-5/8" - 3 chair rail measures 3.625" wide by 1.125" thickness, allowing the detail to be machined out of five or six-quarter lumber. The old world profile is composed of a 7/8" wide half circle on top, bordered by a 7/64" wide flat line with a 19/32" cove and a 1/4" wide bead on the left, the opposite side retains a 1/4" wide line segment joined to a bidirectional congee derived from a 7/16" cavetto and a 3/8" radius arc in the center, attached to a 1/32" wide sunk fillet that merges with a towering 1/4" wide half circle and a 13/64" wide fillet with a 3/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 1.115
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$288.00
$270.50
Total:
$558.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$305.50
$288.00
Total:
$593.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$331.75
$314.25
Total:
$646.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
