Chair Rail Moulding 3-5/8" - 6

Chair Rail Moulding 3-5/8" - 6

Chair Rail Moulding 3-5/8" - 6

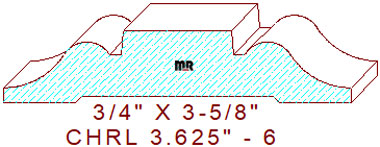

This lovely chair rail moulding 3-5/8" - 6 measures 3.625" wide by .750" thickness. The custom symmetrical profile is composed of a 1-1/8" wide by 1/4" tall raised fillet in the center, flanked by a 1/8" wide sunk line segment that transitions into a two tangent radius cyma reversa, leaving a 5/32" thickness dimension on each side edge of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling designs to help match your creative style.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.625" / Depth of Cut = .594" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
