Chair Rail 3-7/8"
Chair Rail 3-7/8"

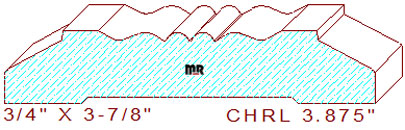

This custom 3-7/8" chair rail measures 3.875" width by .750" thickness, allowing the use of four-quarter lumber for milling on a commercial-grade molder. The lovely symmetrical profile contains two 15/64" wide half-circles separated by tiny line segments in the center. The fillets connect to an S-shaped curvature and a 3/8" broad line segment with a 3/32" vertical step and a twenty-eight-degree beveled line with a 3/64" eased edge on each side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.875
Depth of Cut: 0.780
Bottom Cutter Head
Width: 3.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.00
$283.50
Total:
$585.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$320.50
$302.00
Total:
$622.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$348.25
$329.75
Total:
$678.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
