Chair Rail 3-15/16" - 1
Chair Rail 3-15/16" - 1

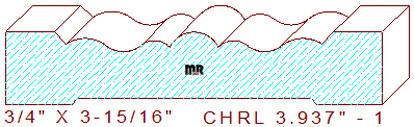

This lovely 3-15/16" - 1 chair rail measures 3.937" width by .750" thickness, permitting using four-quarter lumber for milling on an industrial-style molder. The attractive symmetrical profile contains a half-inch convex arc on the top center. The bead connects to a three-tangent radius wave-like curvature merged with a 3/16" broad splay-faced beveled segment with a 1/2" wide fillet on each side edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.937
Depth of Cut: 0.204
Bottom Cutter Head
Width: 3.937
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$286.72
$286.72
Total:
$573.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$305.47
$305.47
Total:
$610.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.59
$333.59
Total:
$667.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
