Chair Rail Moulding 3-15/16" - 2

Chair Rail Moulding 3-15/16" - 2

Chair Rail Moulding 3-15/16" - 2

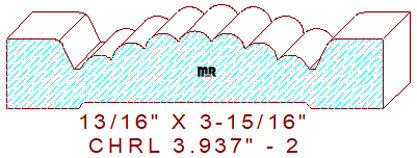

This reeded chair rail molding 3.937" - 2 measures 3.937" width by .812" thickness, allowing the use of four quarter lumber for milling on an industrial-style molder. The intriguing symmetrical profile contains seven 3/16" radius convex arcs on the top center. The semicircular beads connect to a 1/16" wide sunk fillet and an upsloping beveled line merged with a 19/32" broad flat section with a 1/8" rolled inner corner on both side edges of the design.

Utilize our beautiful patterns to create a stylish molding catalog for your millwork company, or, simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you remodel that beautiful house into an elegant home.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.937" / Depth of Cut = .394" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
