Chair Rail / Symmetrical Casing Moulding 4"

Chair Rail / Symmetrical Casing Moulding 4"

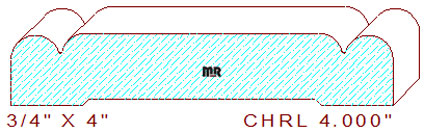

This beaded chair rail/symmetrical casing moulding 4" measures 4.000" wide by .750" thickness with a .437" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The symmetrical profile is comprised of a 3" wide horizontal line with a 1/4" radius quarter round arc on each side, connected to a 1/2" wide half round circle located on each side edge of the pattern, the half circles are recessed by .020" to allow for sanding if necessary.

Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the moulding knives.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
