Chair Rail Moulding 4" - 1

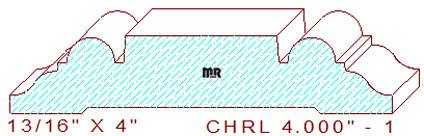

This gorgeous chair rail/casing moulding 4" - 1 measures 4.000" wide by .812" thickness, allowing the detail to be milled from four quarter lumber. The stunning profile is comprised of a 1-5/8" wide by 9/32" deep stepped lines in the center, attached to a 3/32" wide sunk fillet that joins to a 1/2" wide half round circle, connected to a 3/32" wide by 3/32" deep stepped lines with an two tangent radius ogee, leaving a 3/16" thickness dimension on each side edge of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .625" (top knives) & .063" (bottom cutters.)
