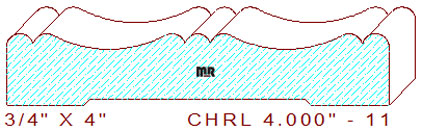

This Beautiful Chair Rail/Casing Moulding 4" – 11 measures 4.000" wide by .750" thickness with a .312" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The symmetrical profile is comprised of seven 9/64" radius half round circles, separated by 2-17/64" radius coves, positioned on each side of the half round circle directly in the center of the pattern.
Please review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of moulder set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
