Chair Rail/Casing Moulding 4" –14

Chair Rail/Casing Moulding 4" –14

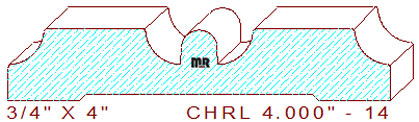

This Unique Chair Rail/Casing Moulding 4" –14 measures 4.000" wide by .750" thickness with a .568" depth of cut on the top horizontal set of moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The symmetrical profile is comprised of a towering 3/16" radius elongated half round circle in the center, attached to a 3/8" radius cavetto that transitions into a 1-1/16" wide raised fillet, connected to another 3/8" radius cove leaving a 3/8" thickness dimension on the side edges of the pattern.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
