Chair Rail Moulding 4" - 15

Chair Rail Moulding 4" - 15

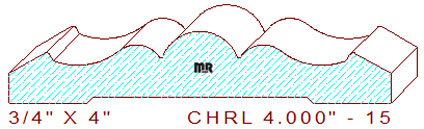

This chair rail/casing Moulding 4" - 15 measures 4.000" wide by .750" thickness. The symmetrical profile is comprised of 25/32" wide half round circle in the center of the pattern, flanked by a cyma reversa with a 15/32" wide double chamfer on each side, leaving a 5/16" thickness dimension on the edges of the pattern. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Are you having issues with lumber movement or sniping on the right vertical cutter head? Maybe proper calibration of the rebate cutter (if you have one), and checking the knife to the fence alignment will help solve the issue.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 4.000" / Depth of Cut = .505" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
