Chair Rail / Casing Moulding 4" - 2

Chair Rail / Casing Moulding 4" - 2

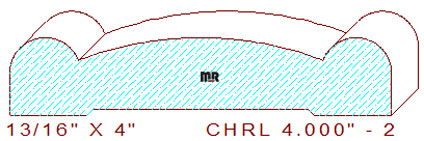

This beaded chair rail/ symmetrical casing moulding 4" - 2 measures 4.000" wide by .750" thickness. The stylish profile is comprised of a 3-17/32" radius arc in the center of the pattern, flanked by a 23/32" wide half round circle on each side edge of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. We also have slightly larger version of this detail available for your review and consideration, chair rail 4.250" - 8.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on moulding knife marks, learn how machine feed rates, and rpm of the cutter head can directly affect the quality of your finished mouldings.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .500" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
